Lucas AWT Construction

Other Views

The Lucas AWT is such a tight fit in the tunnel room, that it is hard to get a good angle to photograph anything.  Nonetheless, here are a few pictures of other parts of the tunnel.

Click on images to enlarge.

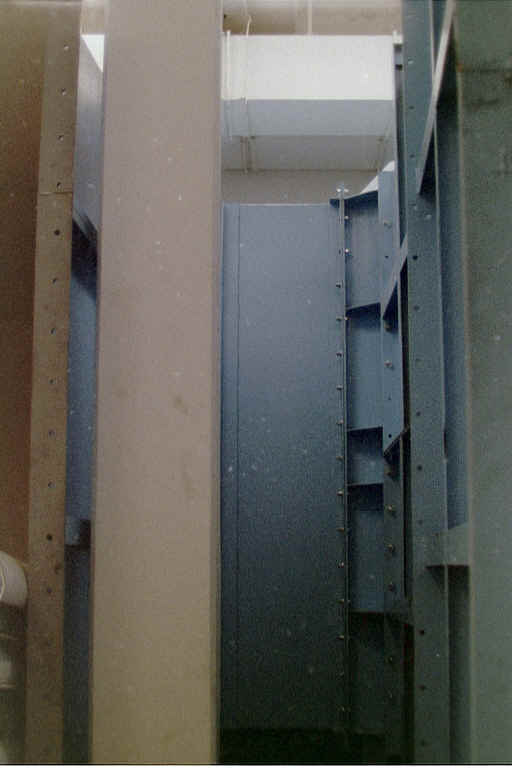

View into "the canyon" between corners 3 and 4.	View over the test section from top of corner 1.

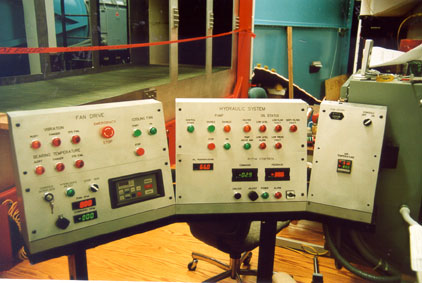

View upstream along the contour of the contraction.	Fan control console.
